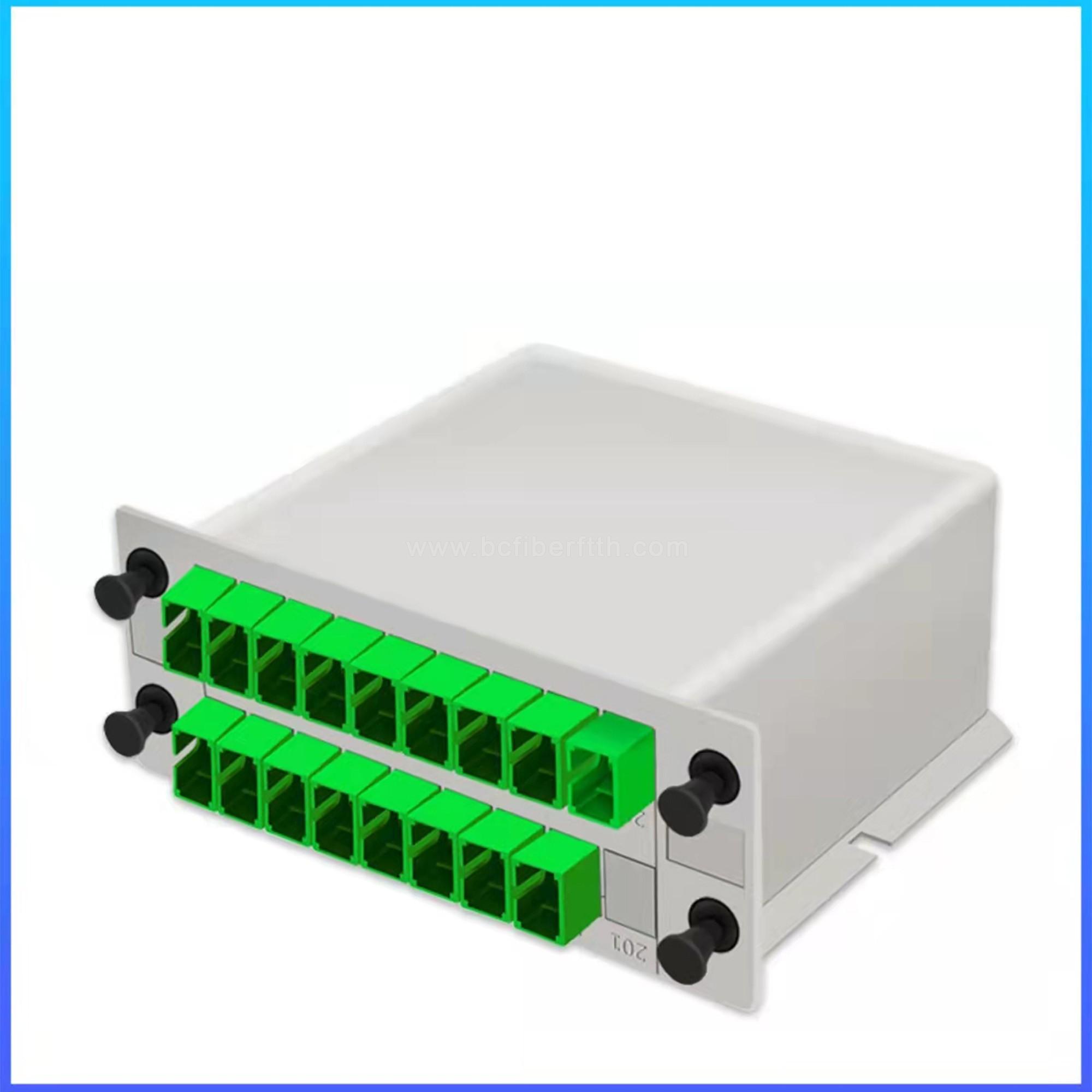

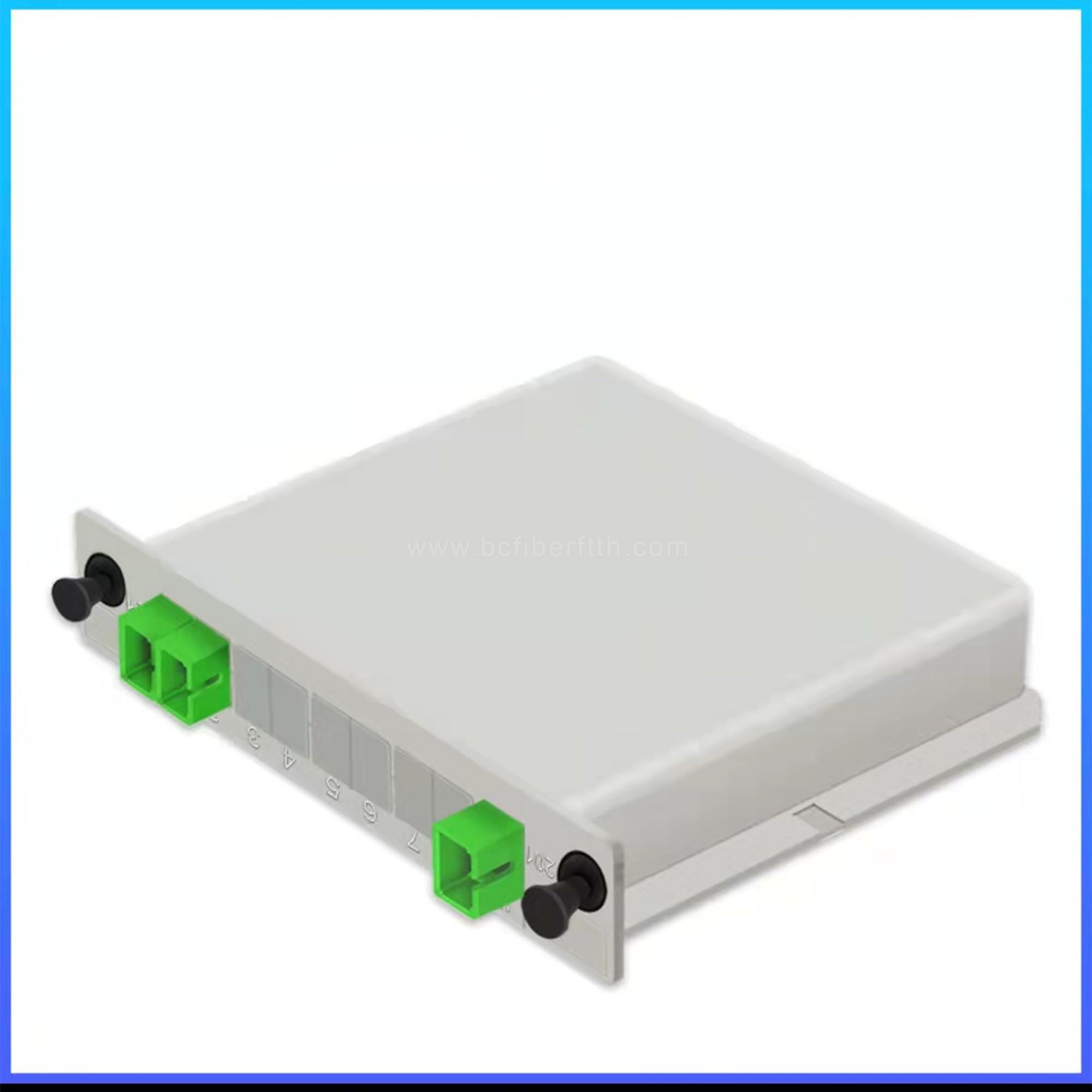

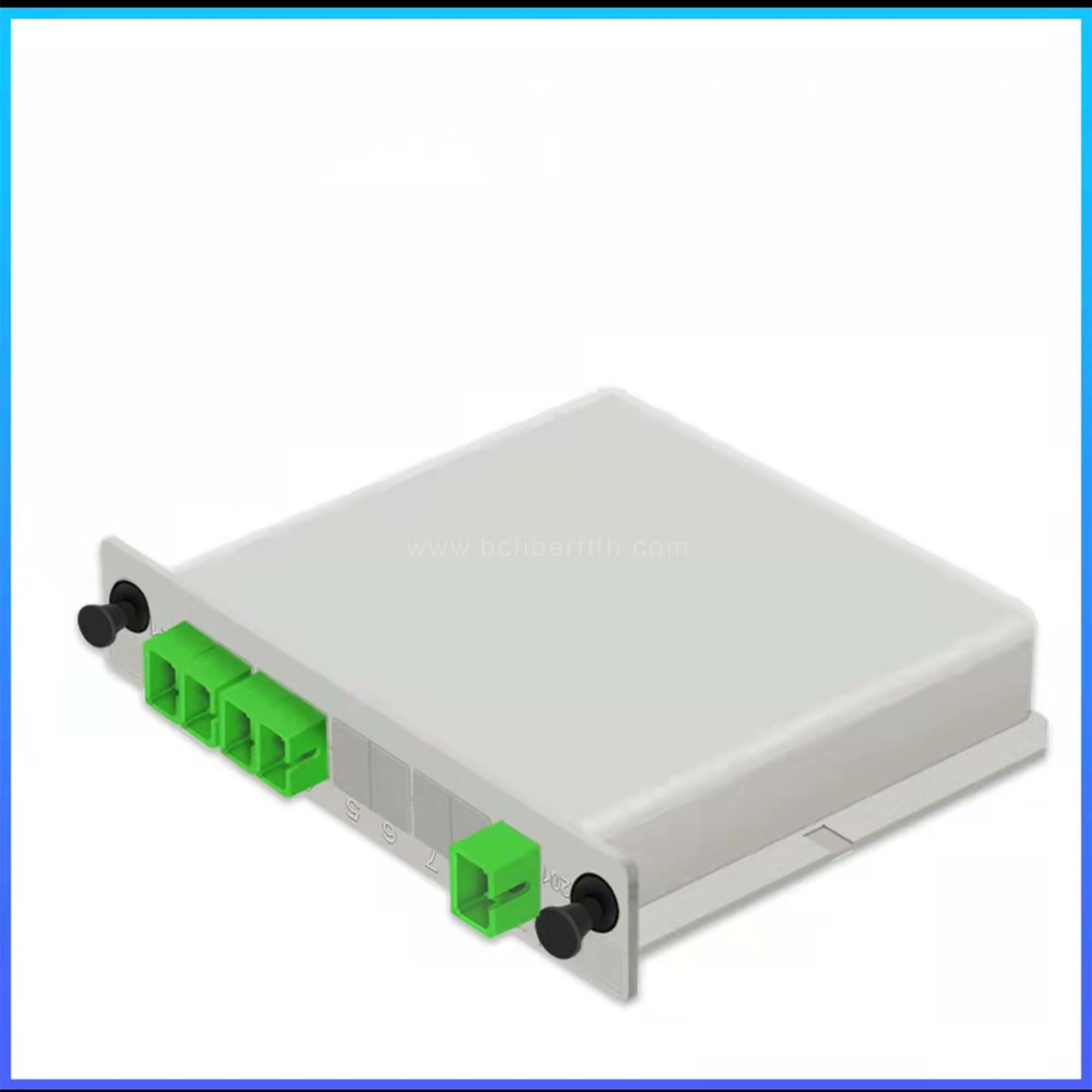

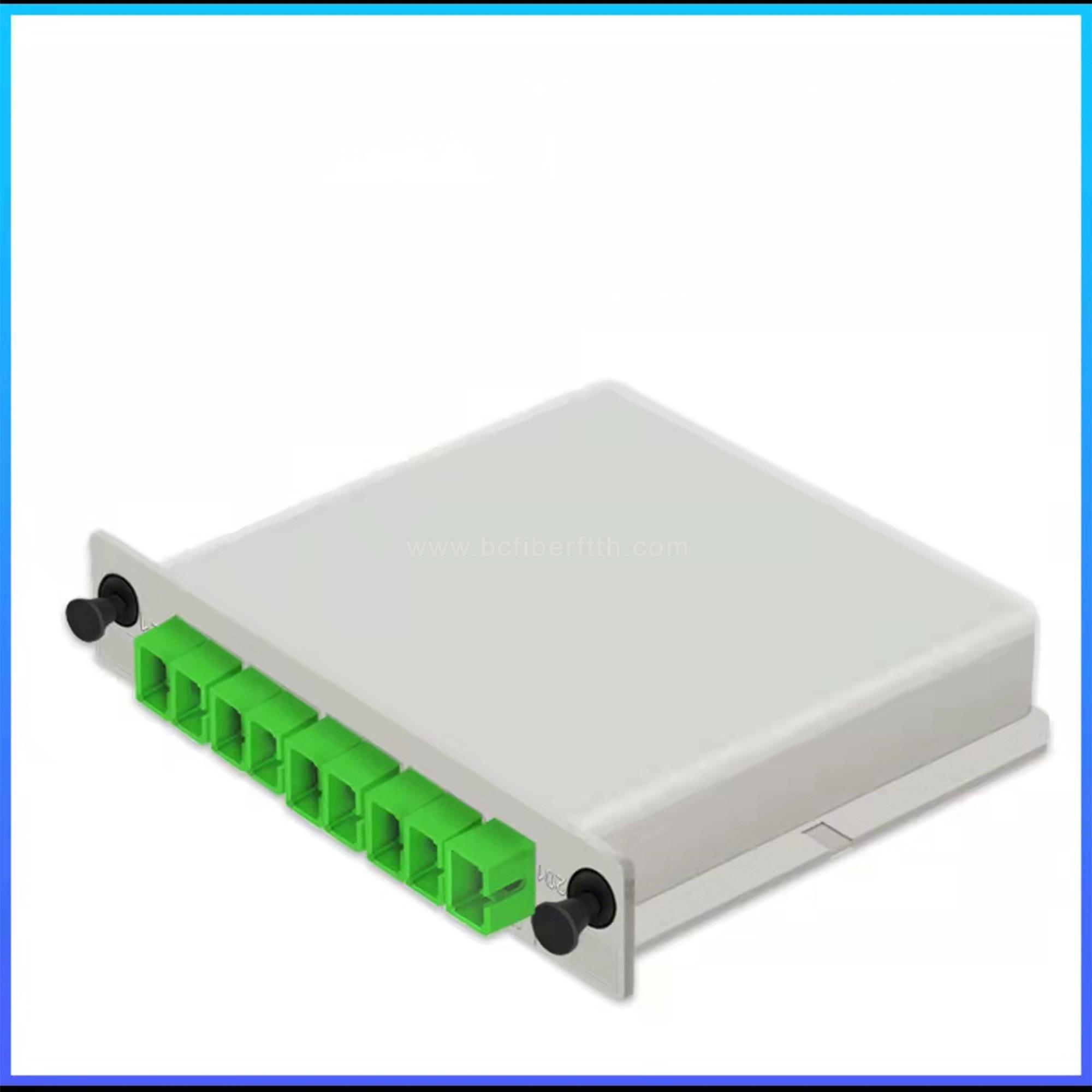

Plug-in Type PLC Splitter sc/apc1*2 1*4 1*8 1*16 1*32 1*64

  • Product Item：PLC Splitter
  • PLC Splitter
  • sc/upc PLC Splitter
  • plc
  • Splitter
    • 1x2 ABS box PLC splitter  , 1x4 ABS box PLC splitter  , 1x32 Steel tube plc splitter  , 1x16 Steel tube plc splitter  , 1x8 Steel tube plc splitter  , 1x12 Steel tube  , plc splitter 1x64  , Steel tube plc splitter  , 1*2 Steel tube  , plc splitter 1*4  , Steel tube plc splitter  , 1*8 fiber optic  , PLC splitter 1*12  , fiber optic PLC splitter  ,  1*16 fiber optic  , PLC splitter 1*32  , fiber optic PLC splitter  , 1*64 fiber optic  , PLC splitter SC/APC fiber optic PLC splitter  , 1x8 modue type PLC splitter  , 1x12 modue type PLC splitter  , 1x64 modue type  , PLC splitter 1*2  , modue type PLC splitter  , plc splitter 1*12  , plc splitter  ,  fiber plc splitter plc fiber splitter  ,  fiber optic plc splitter plc fiber optic splitter  , plc splitter manufacturer 1x2 plc fiber splitter  , plc splitter chip fiber optic PLC splitter  , Steel tube plc splitter plc splitter 1*16  ,  plc splitter 1*32  , plc splitter 1*64  ,  plc splitter SC/APC  , 1x2 fiber plc splitter  , plc fiber optic splitter1*4  ,  plc fiber optic splitter1*8  , plc fiber optic splitter1*12  ,  plc fiber optic splitter1*16  , plc fiber optic splitt
    Inquiry Send Email

    Description

    Definition

    Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology.It is used to split a fiber optic beam into several beams at a certain splitting ratio.It is an important passive device in passive optical network.

    Product Features

    • Low Insertion loss
    • Low PDL
    • Excellent channel-to-channel uniformity
    • High return loss and Good repeatability
    • Wide wavelength range

    Applications

    • LAN, WAN and Metro Networks
    • FTTH project & FTTX Deployments
    • CATV System
    • GPON, EPON
    • Fiber Optic Test Equipment
    • Data-base Transmit Broadband Net
    Parameters 1×2 1×4 1×8 1×16 1×32 1×64
    Operating Wavelength (nm) 1260～1650
    Fiber Type G657A  or  customer specified
    Insertion Loss (dB) 3.8 7 10.2 13.5 16.8 20.5/21.0
    Loss Uniformity (dB) 0.4 0.5 0.8 1 1.2 2
    Return Loss (dB) 55 55 55 55 55 55/50
    Polarization Dependent Loss(dB) 0.2 0.2 0.2 0.2 0.2 0.35
    Directivity (dB) 55 55 55 55 55 55
    Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
    Temperature Stability (- 50～ 85 ℃)(dB) 0.4 0.4 0.4 0.5 0.5 0.5
    Operating Temperature (℃) -50～85
    Storage Temperature (℃) -50～85
    Module Dimension (mm) (L×W×H) 130×100×25 130×100×25 130×100×25 130×100×50 267×100×50 130x100x102
