Description
Definition

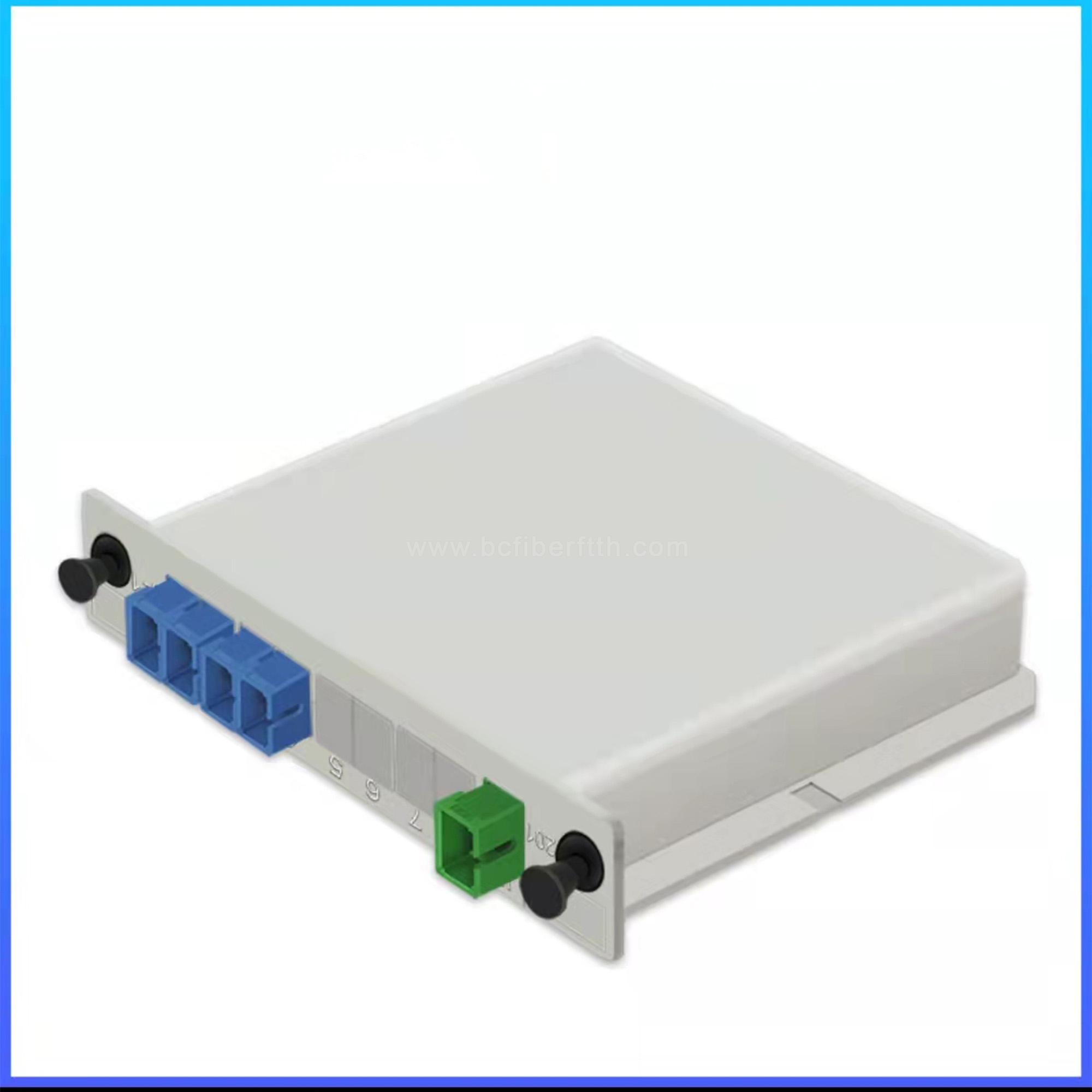

Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology.It is used to split a fiber optic beam into several beams at a certain splitting ratio.It is an important passive device in passive optical network.
Product Features
- Low Insertion loss
- Low PDL
- Excellent channel-to-channel uniformity
- High return loss and Good repeatability
- Wide wavelength range
Applications
- LAN, WAN and Metro Networks
- FTTH project & FTTX Deployments
- CATV System
- GPON, EPON
- Fiber Optic Test Equipment
- Data-base Transmit Broadband Net
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260～1650
Fiber Type
G657A or customer specified
Insertion Loss (dB)
3.8
7
10.2
13.5
16.8
20.5/21.0
Loss Uniformity (dB)
0.4
0.5
0.8
1
1.2
2
Return Loss (dB)
55
55
55
55
55
55/50
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.2
0.2
0.35
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Stability (- 50～ 85 ℃)(dB)
0.4
0.4
0.4
0.5
0.5
0.5
Operating Temperature (℃)
-50～85
Storage Temperature (℃)
-50～85
Module Dimension (mm) (L×W×H)
130×100×25
130×100×25
130×100×25
130×100×50
267×100×50
130x100x102
