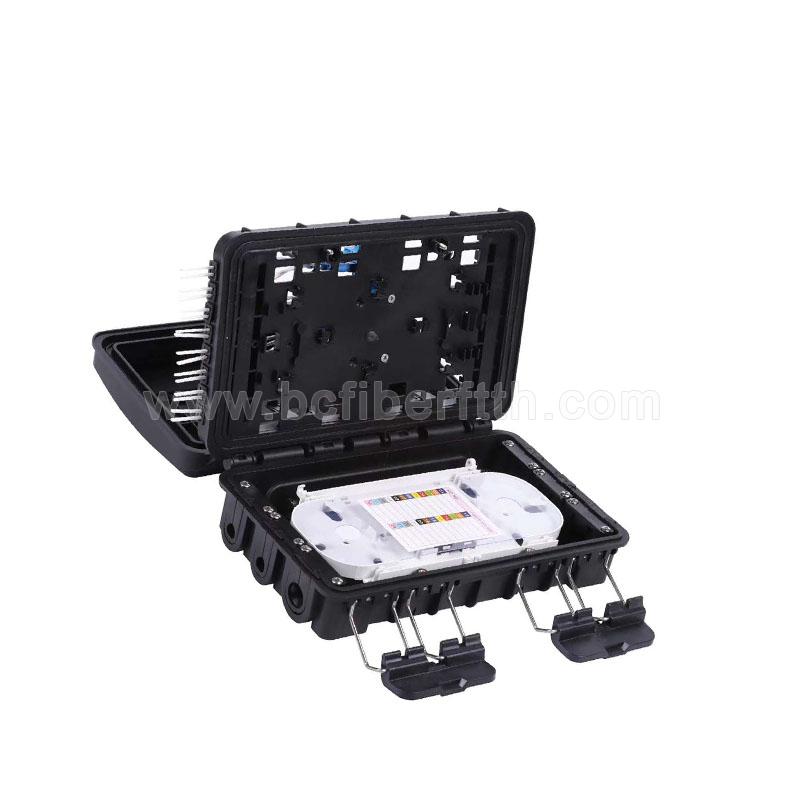

FTTH box 16 core outdoor Aerial fiber optic splitter distribution box terminal box
Description :
Fiber optic distribution boxes are small size, light weight economic solution for small termination capacity , The fiber splicing, splitting, distribution can be done in this box, and mean while it provides solid protection and management for the FTTx network building.
Applications:
• Widely used in FTTX access networks.
• Telecommunication Networks
• CATV networks
• Local Area Networks
Features:
The product is made of high-quality impact resistant plastic and has a standard user interface that can be turned on repeatedly.
Outdoor application and good UV resistant, impact resistant and waterproof
It can be loaded with 2pcs 1x8 LGX Splitter or 2pcs steel tube micro PLC Splitter.
Unique flip splice tray, flip angle more than 180 degrees, the splicing area and the distribution cable area is more distinct, reducing the cables crossing.
Numerous application such mid-span, branch and direct splice.
3 layer structure and easy to maintain
It is suitable for the application on NAP in the distributed split PON architecture.
Protection Level: IP65
Description :
Fiber optic distribution boxes are small size, light weight economic solution for small termination capacity , The fiber splicing, splitting, distribution can be done in this box, and mean while it provides solid protection and management for the FTTx network building.
Applications:
• Widely used in FTTX access networks.
• Telecommunication Networks
• CATV networks
• Local Area Networks
Features:
The product is made of high-quality impact resistant plastic and has a standard user interface that can be turned on repeatedly.
Outdoor application and good UV resistant, impact resistant and waterproof
It can be loaded with 2pcs 1x8 LGX Splitter or 2pcs steel tube micro PLC Splitter.
Unique flip splice tray, flip angle more than 180 degrees, the splicing area and the distribution cable area is more distinct, reducing the cables crossing.
Numerous application such mid-span, branch and direct splice.
3 layer structure and easy to maintain
It is suitable for the application on NAP in the distributed split PON architecture.
Protection Level: IP65
Excellent sealing performance. It is compatible with different optical cables.
|
Items |
Specification |
|
Adapter Capacity (Fiber Count) |
SC Simplex /LC Duplex |
|
16/32 |
|
|
Dimensions (W*H*D,mm) |
290*190*110 |
|
Number of Cable Entrance(s) and Exit(s) |
3/16 |
|
Weight(g) |
1000g |
|
Optional Accessories |
Heat-shrink tubes , Adapters, Splitters |
|
Installation |
Aerial |
